Mid Range Handheld RFID Reader HF PDA For Warehouse Management Android 7.0 System

Name: Mid Range Handheld RFID Reader HF PDA For Warehouse Management Android 70 System
Brand: Andea Electronics
Price: 1 USD

Pla of Origin : CHINA

Brand Name : Andea Electronics

MOQ : 1 Piece

Packaging Details : Standard Export Carton, Foam and Protective Film

Delivery Time : 3~5 work days

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500~1000 Sets Per Month

Model Number : AH2201

Pri : Negotiable

Place of Origin : CHINA

CPU : Cortex A9 1.2GHZ (dual core)

RAM : 1GB

ROM : 4GB

Compatible Protocols : ISO 15693 and ISO 18000-3M1

RF Power : 0.25~1.5W

Anti-collision Algorithm : Support

Contact Now

HF PDA Handheld RFID Reader Reading Range 28CM With Android 7.0 System

Product Introduction:

AH2201 HF Android handheld RFID reader is an industrial grade RFID mobile terminal, which is integrated with mid-range high performance RFID reader module, reading range up to 28cm (standard RFID card). With anti-collision algorithm, its identify speed can be up to 50 Pieces per second. We use 5200mAh lithium polymer battery to make sure it could work a long time so you don't need to charge oftenly.

Product Features:

Operating System: Android 7.0
Operating Frequency: 13.56MHz
Compatible Protocols: ISO15693 and ISO18000-3
RF Power: 0.25-1.5W (adjustable)
Support anti-collision algorithm
Wireless Communication: Bluetooth, WIFI, GPRS (for option), WCDMA (for option)
Battery Capacity: 5200mAh
Free SDK and testing software are provided

Technical Specification
Operating System	Android 7.0
CPU	Cortex A9 1.2GHZ (dual core)
RAM / ROM	RAM: 1GB ROM: 4GB
Display	4.0inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine
Keyboard	Number keyboard and function keyboard
Touch Screen	Support multi-point capacitive touch screen, workable with glove
Micro SD card	Support 32G MICRO SD card
Audio	Support voice announment
Wireless Communication	GPRS	GPRS, EDGE, 4-band 900/1800, 850/1900
	4G
	WIFI	Meet IEEE 802.11b/g
	Bluetooth	Meet Bluetooth 4.0
Indicator Light	Internet indicator light, charging indicator light
Battery	Capacity	5200mAh lithium polymer
	Stand-by Time	When fully charged, close wireless communication functions and stand-by time is 200h and above
	Operating Time	＞6h
	Charging Time	＜4h
RFID Parameters
Compatible Protocol	ISO 15693
Operating Frequency	13.56 MHz
RF Power	0.25-1.5W
Reading Range	28cm (standard RFID card)
Anti-collision Algorithm	Support
Working Environment
Operating Temperature	-10℃~70℃
Storage Temperature	-20℃~85℃
Relative Humility	10%~90% RH, no condense
Physical Parameters
Gross Weight	<320g

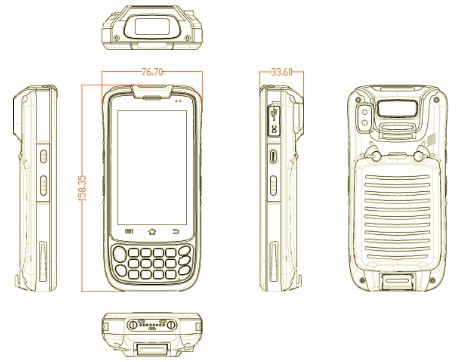

Dimension	1607632 ± 2mm

Mid Range Handheld RFID Reader HF PDA For Warehouse Management Android 7.0 System

Product Application:

RFID ticket identification, assets management, warehouse inventory, etc.
