16GB ROM Wifi RFID Reader Portable , RFID Barcode Reader With 4500mAh Lithium Polymer Battery

Name: 16GB ROM Wifi RFID Reader Portable RFID Barcode Reader With 4500mAh Lithium Polymer Battery
Brand: Andea Electronics
Price: 1 USD

Buy cheap 16GB ROM Wifi RFID Reader Portable , RFID Barcode Reader With 4500mAh Lithium Polymer Battery product

Brand Name : Andea Electronics

Model Number : AH2202

Pla of Origin : CHINA

MOQ : 1 Piece

Pri : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500~1000 Sets Per Month

Delivery Time : 3~5 work days

Packaging Details : Standard Export Carton, Foam and Protective Film

Place of Origin : CHINA

CPU : Cortex A53 (quad core)

RAM : 2GB

ROM : 16GB

Compatible Protocols : ISO 15693 and ISO 18000-3M1

Reading Range : 28cm

WIFI : Support

Contact Now

Wireless Handheld RFID Reader Android System WiFi And Bluetooth

Product Introduction:

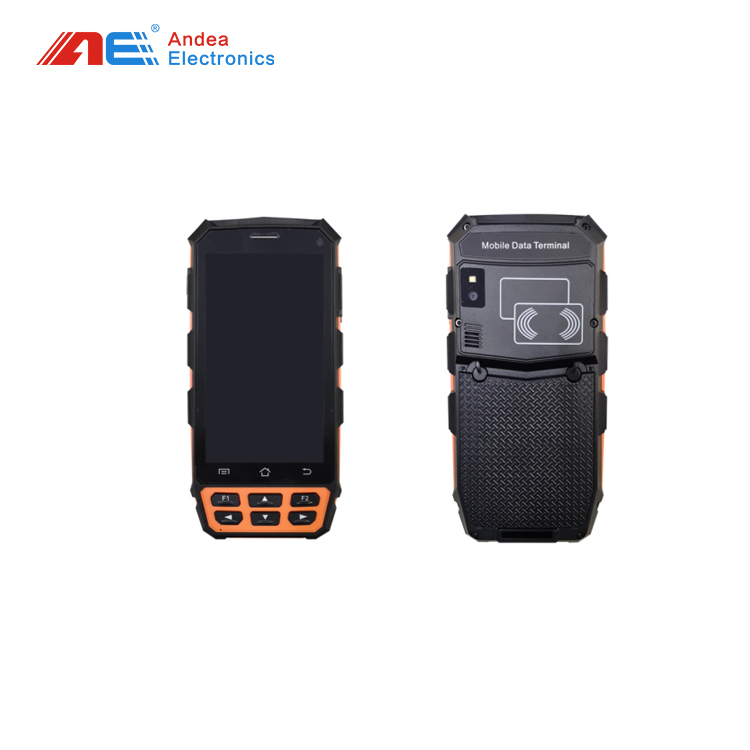

AH2202 wireless handheld RFID PDA is integrated with WiFi and Bluetooth communication module, which supports Android 7.0 operating system. It is integrated with Andea's high performance meduim power RFID reader module, reading range up to 28cm (standard RFID card). Due to its anti-collision algorithm and 1.5W radio frequency power, it is possible to identify 50 Pieces per second. Long time working as it has a 4500mAh lithium polymer battery, which makes it reliable for outdoor using.

Product Features:

Integrated with Android 7.0 operating system
Support WiFi and Bluetooth communication
13.56 MHz operating frequency
Support ISO15693 and ISO18000-3M1 protocols
RF Power is configurable from 0.25W to 1.5W
Support anti-collision algorithm
Use a 4500mAh lithium polymer battery
Provide SDK and testing software
Integration guide by our engineer

Technical Specification
Operating System	Android 7.0
CPU	Cortex A53 (quad core)
RAM / ROM	RAM: 2GB ROM: 16GB
Display	5.0inch IPS panel, Resolution:720*1280,HD full viewing angle, viewable under sunshine
Keyboard	Number keyboard and function keyboard
Touch Screen	Support multi-point capacitive touch screen, workable with glove
Micro SD card	Support 128G MICRO SD card
Audio	Support voice announment
Wireless Communication	GPRS	GSM/GPRS/Edge (850/900/1800/1900MHz)
	4G	TD-LTEBand38/39/40/41FDD-LTEBand1,2,3,4,7,17,20
	WIFI	Support
	Bluetooth	Meet Bluetooth 4.0
Indicator Light	Internet indicator light, charging indicator light
Battery	Capacity	4500mAh lithium polymer
	Stand-by Time	When fully charged, close wireless communication functions and stand-by time is 360h and above
	Operating Time	＞12h
	Charging Time	＜4h
RFID Parameters
Compatible Protocol	ISO15693/ISO18000-3M1
Operating Frequency	13.56 MHz
RF Power	0.25-1.5W
Reading Range	28cm (standard RFID card)
Anti-collision Algorithm	Support
Working Environment
Operating Temperature	-20℃~50℃
Storage Temperature	-20℃~70℃
Relative Humility	5%~95% RH, no condense
Physical Parameters
Gross Weight	<400g
Dimension	1708523 ± 2mm

Product Application:

Due to its easy operating and long distance reading range, it could be widely used for RFID ticket identification, assets management, warehouse inventory, etc.
