Integrated Library RFID Gate System 13.56MHz With Multiple Aisles / RFID Door Reader

Name: Integrated Library RFID Gate System 1356MHz With Multiple Aisles RFID Door Reader
Brand: Andea Electronics
Price: 1 USD

Brand Name : Andea Electronics

Model Number : LSG405T

Pla of Origin : CHINA

MOQ : 1 Piece

Pri : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500~1000 Sets Per Month

Delivery Time : 3~5 work days

Packaging Details : Standard Export Carton, Foam and Protective Film

Place of Origin : CHINA

Material : Acrylic and sheet metal

Alarm Mode : EAS, AFI, EAS+AFI

Compatible Protocol : ISO15693

Passive Alarm : Support

EMI Detection : Support

Width of Channel : 90cm

Power Supply : AC 100~240 , 50~60Hz

Contact Now

Integrated Library System 13.56MHz RFID Gate Reader with multi Aisles

Product Introduction:

LSG405T is Andea's new kind 13.56MHz RFID Security Gate, it can be easily integrated library system (ILS) , like KOHA ,ALA , EBSCO and others customer special library systems . They also encode detailed material information on the RFID tag. The tag is “read” by the security gate and the signal is sent to your ILS. When an item that was not properly checked out passes through the gates the ILS is able to connect the type and title of the material that triggered the alarm, which is immediately communicated to the staff workstations. LSG405T RFID gate reader support many kinds ISO15693 protocol RFID tag , like I Code SLI/SLIX/SLIX2 , etc.

In additional , LSG405T also be equipped with a customer counting, which will enable you to monitor the patrons coming in and leaving your library clearly .

Technical Specification :

Model Number	LSG405T
Compatible Protocols	ISO 15693 / ISO18000-3M1
Alarm Mode	EAS, AFI and EAS+AFI
Passive Alarm	Support
EMI Detection	Support
Aisle Width (Max)	90cm
Aisle number (Max)	10
Power Supply	AC 100~240V 50~60Hz / 95mA
RF Power	1~8W (Adjustable)
Max Power Consumption	30W (Rated Power 20W)
Housing Material	Acrylic and Sheet metal
Water Proof	No
Dimension (LWH)	Whole: 1664636120mm Base: 636*120mm
Dimension (LWH)	Whole: 1664636120mm Base: 636*120mm
Net Weight	23 kg/pc
Working Temperature	0℃~60℃
Storage Temperature	-45℃~85℃
Relative Humidity	5%~80%

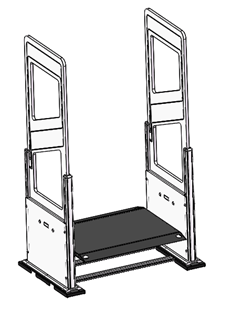

Install Instruction Picture :

Integrated Library RFID Gate System 13.56MHz With Multiple Aisles / RFID Door Reader

Application:

RFID library manageemnt
RFID archive management
Self service shopping
