Long Distance IOT RFID Reader Android Personal Digital Assistant With Cortex A9 CPU

Name: Long Distance IOT RFID Reader Android Personal Digital Assistant With Cortex A9 CPU
Brand: Andea Electronics
Price: 1 USD

Brand Name : Andea Electronics

Model Number : AH2201

Pla of Origin : CHINA

MOQ : 1 Piece

Pri : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500~1000 Sets Per Month

Delivery Time : 3~5 work days

Packaging Details : Standard Export Carton, Foam and Protective Film

Place of Origin : CHINA

CPU : Cortex A9 1.2GHZ (dual core)

RAM : 1GB

ROM : 4GB

Compatible Protocols : ISO 15693 and ISO 18000-3M1

Reading Range : 28cm

Anti-collision Algorithm : Support

Contact Now

Android IOT RFID Reader Personal Digital Assistant With Cortex A9 CPU

Product Introduction:

AH2201 Internet Of Things RFID reader is a high frequency RFID mobile terminal, which supports Android 4.4.2 operating system. It is integrated with Andea's high performance meduim power RFID reader module, reading range up to 28cm (standard RFID card). Due to its anti-collision algorithm and 1.5W radio frequency power, it is possible to identify 50 Pieces per second. Long time working as it has a 5200mAh lithium polymer battery, which makes it reliable for outdoor using.

Product Features:

Hardware part of Internet Of Things
Integrated with Android 7.0 operating system
13.56 MHz operating frequency, be compatible with ISO15693 protocols
RF Power is configurable from 0.25W to 1.5W
Support anti-collision algorithm
Wireless communication ways: Bluetooth, WIFI, GPRS (for option), WCDMA (for option)
5200mAh lithium polymer battery
SDK and testing software provided

Technical Specification
Operating System	Android 7.0
CPU	Cortex A9 1.2GHZ (dual core)
RAM / ROM	RAM: 1GB ROM: 4GB
Display	4.0inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine
Keyboard	Number keyboard and function keyboard
Touch Screen	Support multi-point capacitive touch screen, workable with glove
Micro SD card	Support 32G MICRO SD card
Audio	Support voice announment
Wireless Communication	GPRS	GPRS, EDGE, 4-band 900/1800, 850/1900
	4G
	WIFI	Meet IEEE 802.11b/g
	Bluetooth	Meet Bluetooth 4.0
Indicator Light	Internet indicator light, charging indicator light
Battery	Capacity	5200mAh lithium polymer
	Stand-by Time	When fully charged, close wireless communication functions and stand-by time is 200h and above
	Operating Time	＞6h
	Charging Time	＜4h
RFID Parameters
Compatible Protocol	ISO 15693
Operating Frequency	13.56 MHz
RF Power	0.25-1.5W
Reading Range	28cm (standard RFID card)
Anti-collision Algorithm	Support
Working Environment
Operating Temperature	-10℃~70℃
Storage Temperature	-20℃~85℃
Relative Humility	10%~90% RH, no condense

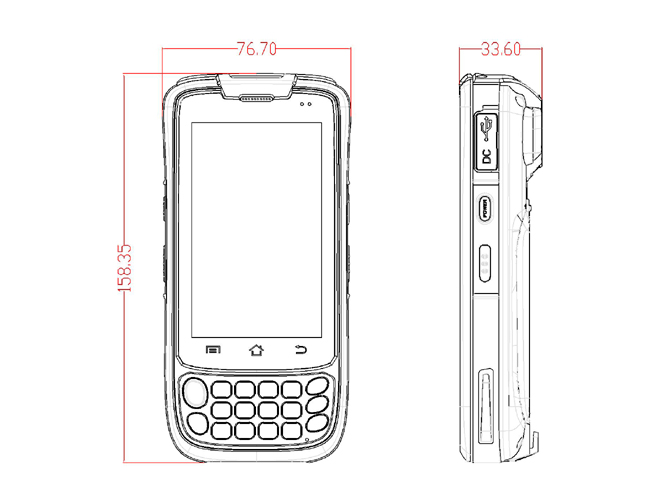

Physical Parameters
Gross Weight	<320g
Dimension	1607632 ± 2mm

Long Distance IOT RFID Reader Android Personal Digital Assistant With Cortex A9 CPU

Product Application:

As an important device in IOT, due to its easy operating and long distance reading range, it could be widely used for RFID ticket identification, assets management, warehouse inventory, etc.
