RFID Handheld Reader PDA Number Keyboard 28cm Scanner Reading Range HF With Indicator Light

Brand Name : Andea Electroncis

Model Number : AH2201

Place of Origin : CHINA

MOQ : 1 Piece

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500~1000 Sets Per Month

Delivery Time : 3~5 work days

Packaging Details : Standard Export Carton, Foam and Protective Film

Operating System : Android 7.0

Display : 4.0 inch IPS Panel

Memory : RAM:2GB ROM:16GB

Compatible Protocol : 13.56MHz

Dimension : 158*75*28±2mm

Communication Interfa : USB

Contact Now

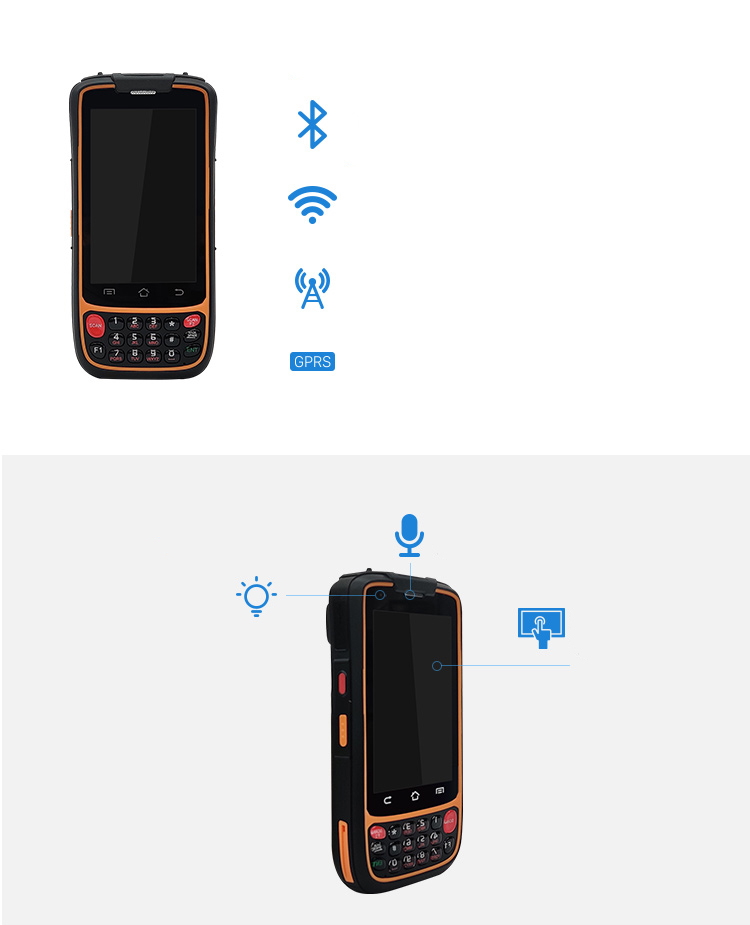

RFID Handheld Reader PDA 28cm Scanner Reading Range HF



Product Introduction:



RFID Handheld Reader AH2201 is an industry - level RFID handheld mobile devices, the internal power of high performance integrated RFID read / write modules, support ISO 15693 international agreements - standard, identify the distance above 28cm ( standard card size ), with anti - collision algorithm, audio control (output), SD slot, IC card slot, contactless HF RFID, GPRS, WCDMA, WiFi and Bluetooth connectivity.





Technical Specification
 Operating  System  Android 7.0
 CPU  Coretex-A53
1.3GHz
 RAM / ROM  RAM: 2GB   ROM: 16GB
 Display  4.0 inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under  sunshine
 Keyboard  Number keyboard and function keyboard
 Touch Screen  Support multi-point capacitive touch screen, workable with glove
 Micro SD card  Support 128G MICRO SD card
 Audio  Support voice announment
 Wireless  Communication

 GPRS

 GPRS, EDGE , 4-band 900/1800,850/1900
 4G

 WIFI

 IEEE802.11a/b/g/n
 Bluetooth  Meet Bluetooth 4.0
 Indicator Light  Internet indicator light, charging indicator light
 Battery  Capacity  5200mAh lithium polymer
 Stand-by  Time  When fully charged, close wireless communication functions  and  stand-by time is 360h and above
 Operating  Time  >6h
 Charging  Time  <10h
RFID Parameters
 Compatible  Protocol

ISO15693/ISO18000-3M1

 Operating  Frequency  13.56 MHz
 RF Power  0.25-1.5W
 Reading Range  28cm (standard RFID card)
 Anti-collision  Algorithm  Support
Working Environment
 Operating  Temperature  -20℃~50℃
 Storage  Temperature  -20℃~70℃
 Relative  Humility  5%~95% RH, no condense
Physical Parameters
 Gross Weight  <340g
 Dimension  158*75*28 ± 2mm



RFID Handheld Reader PDA Number Keyboard 28cm Scanner Reading Range HF With Indicator Light





Product Application:



Widely applied to book tickets identification, asset management, warehouse management, inspection, inventory tracking, and other fields.
